NY-CDGY-5050()

概述技术规格

PIR Motion & light sensor: At dark place, it will light up automatically when you get into 10ft detection range, and auto go out 15 seconds after you get out of the range;

Suitable for stairway, drawer, under-cabinet, pantry, bedroom, wardrobe, workshop, bookshelf, attic, closet, basement, hallway, corridor, headboard, trunk lighting, etc.



Three modes

ON: constant lighting

OFF: turn light off

AUTO: auto-sensing state, light up automatically in the dark when motion is

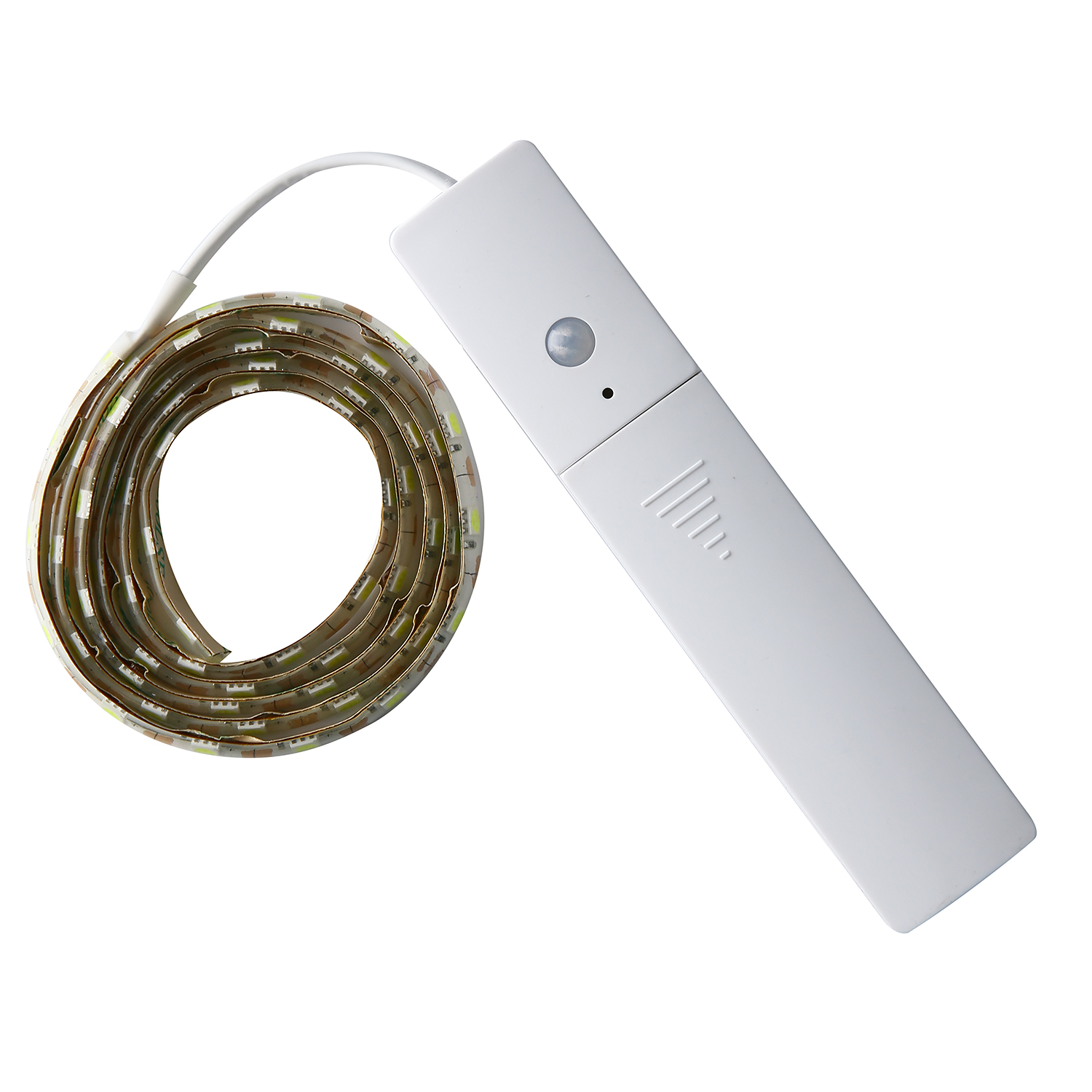

Compact motion sensor LED under cabinet light adopt with high bright Epistar 5050 LED light source, combining passive infrared (PIR) technology to detect motions.

Under AUTO mode, it will light up automatically in the dark when a motion is detected and auto turn off for hands-free convenience.

Easy installation: magnet and 3M adhesive tape, could be hung and stick-on No tools, screws or nuts are required when installation.

Detection range: 10ft

LED life: Above 80000h

Delay time: 15seconds

Input voltage: 5V DC

Brightness: 250lm

Strip Length: 1m

Color Temperature: 3000K-5000K

Working temperature: -10 ~ 50

Motion angle: 120°



Notices

-As built-in photo sensor, it may not work in AUTO mode in daylight or bright surroundings.

-Non-waterproof, do not use it in any heavy humidity or low temp location.

-Try not to mount 2 lights so near. They may interact each other in AUTO mode.
